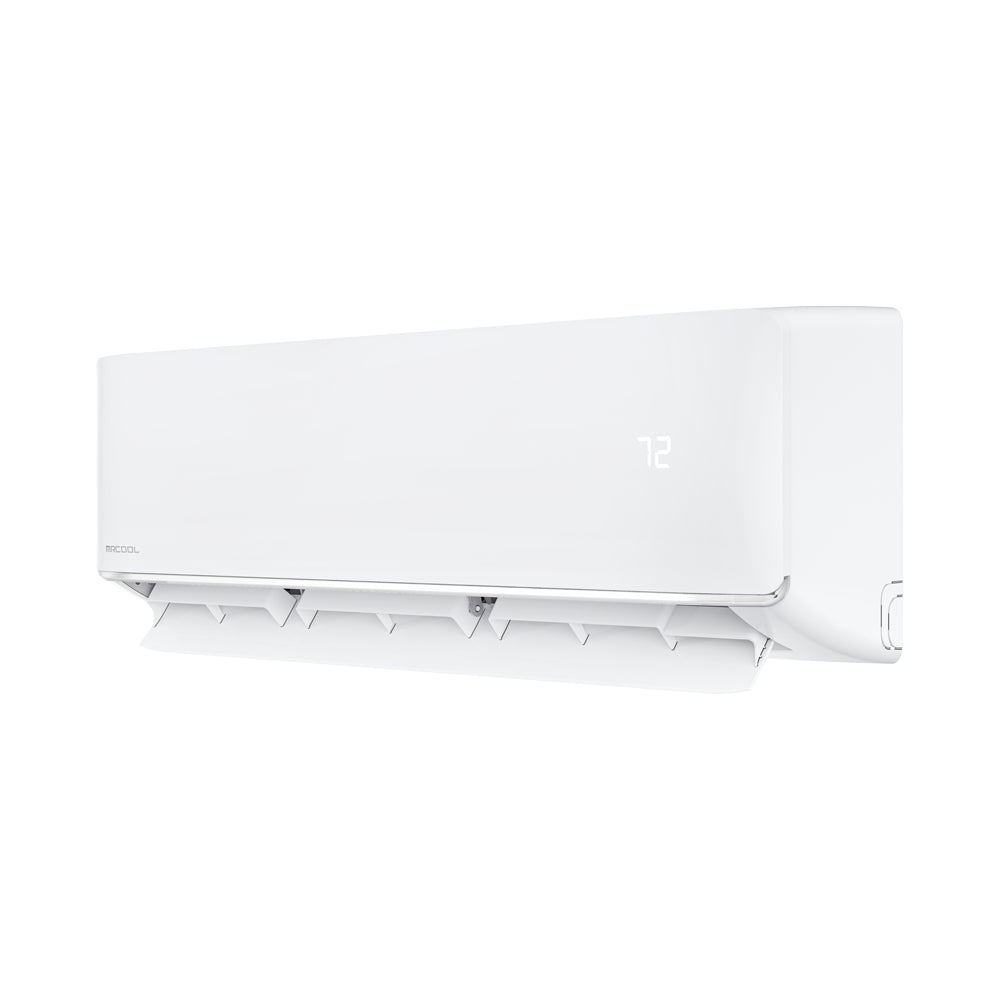

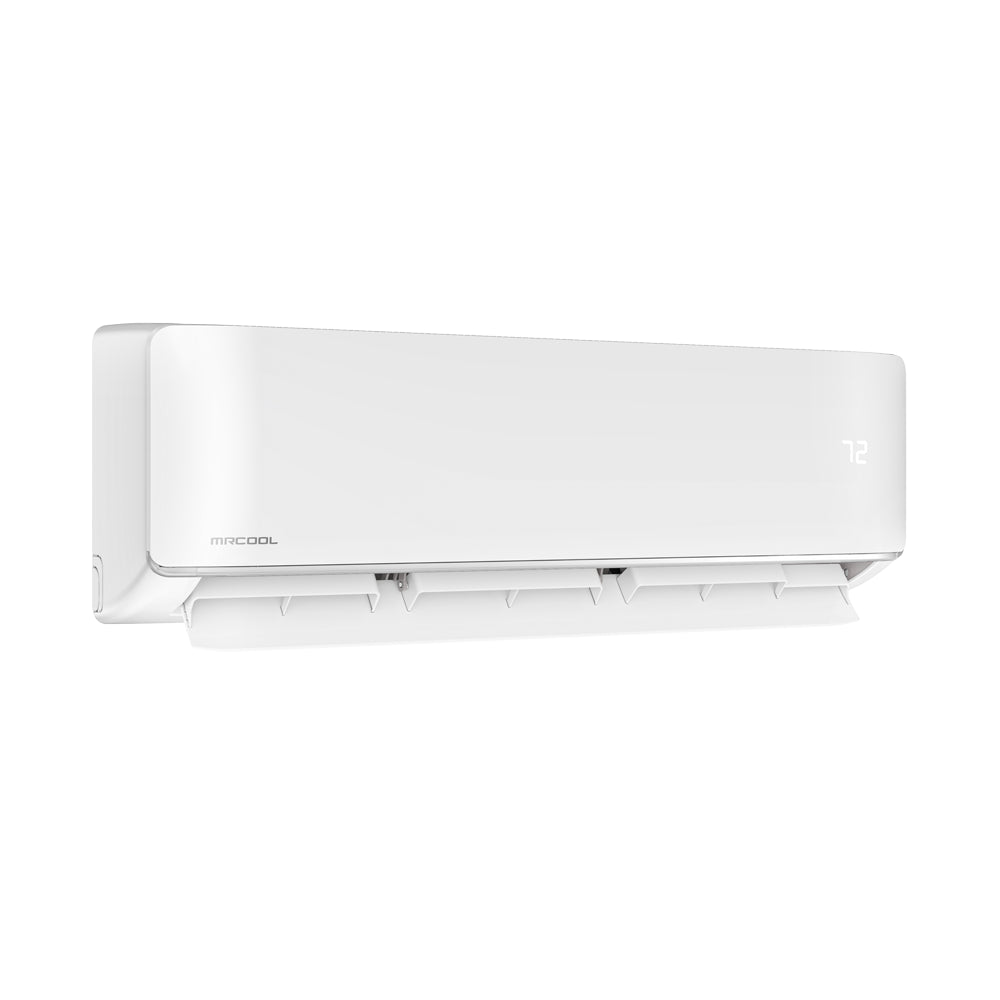

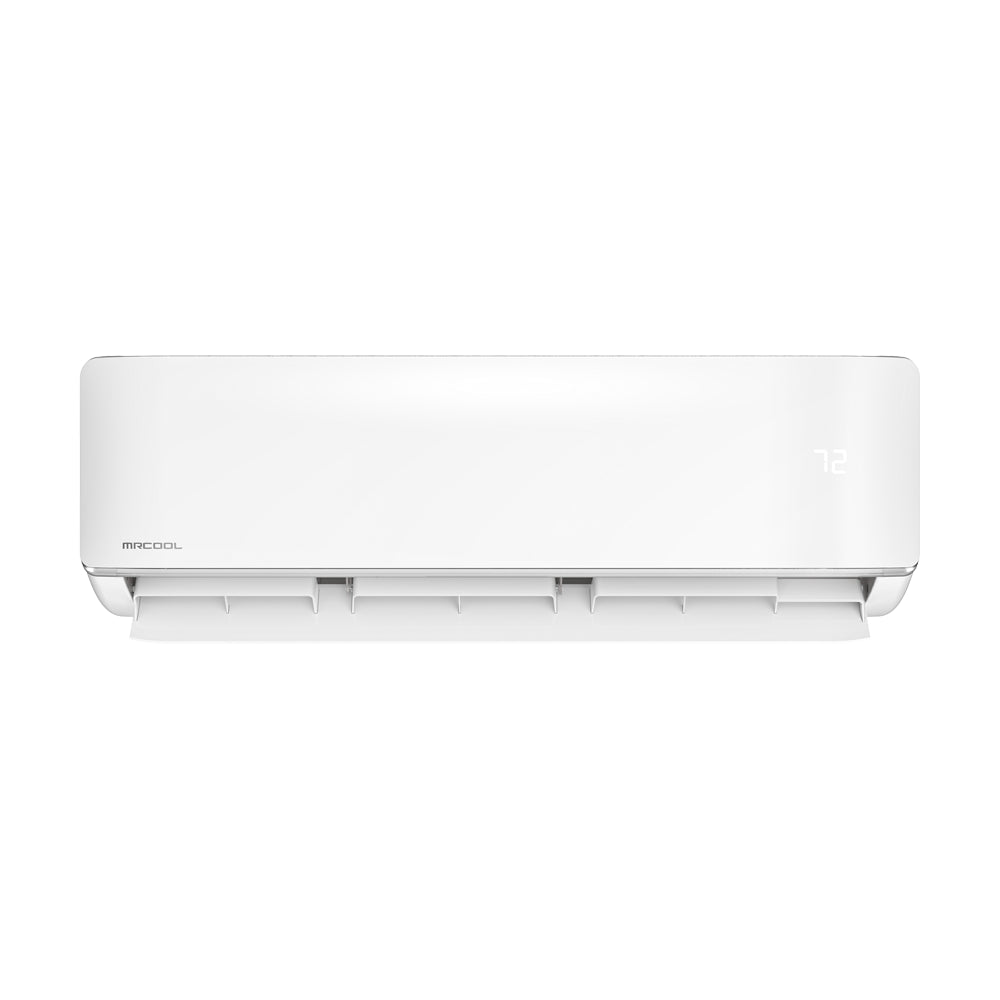

MRCOOL DIY 12k BTU 115V 5th Gen Mini-Split (25ft lineset)

Upgrade your space with the 5th Generation MRCOOL® DIY® 12K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler. This system is designed for straightforward, tool-free installation, with no special skills required, and provides efficient heating and cooling for areas up to 550 sq. ft. The pre-charged 25-foot DIY® QuickConnect® line set, filled with R-454B refrigerant, eliminates the need for vacuuming, saving you time, effort, and installation costs. Plus, the included DIYPRO® cable enhances durability by removing the need for electrical conduit, protecting against outdoor elements and wildlife. Take control your way—whether with the wireless remote, the SmartHVAC app for Apple and Android, or hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® Condenser also provides enhanced corrosion resistance, making it an excellent choice for coastal environments. Designed with your comfort in mind, the system’s wireless remote features Follow Me technology, allowing the air handler to adjust based on the remote’s location for personalized comfort. Dry Mode adds another layer of convenience by reducing humidity and preventing excess condensation. With industry-leading warranties, including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, you can trust in long-lasting performance. Experience an easier installation, smart technology, and year-round comfort with the 5th Generation MRCOOL® DIY®.

Features

• NEEP ccASHP Listed
• Intertek listed 5031495
• Easy DIY installation
• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

Specification

• Tonnage: 1

• Voltage (V): 115

• Phase: 1

• Cycle: 60

• Max Fuse Breaker (A): 15

• Min Circuit Ampacity (A): 3

• Mount Type: Wall

• Color: White

• Max Coverage Area: 550 sqft

• Decibel Rating Low (dBA): 18

• Decibel Rating High (dBA): 43

• Number of Speeds: 5

• Oscillation: Yes

• Liquid Line Size: 1/4

• Suction Line Size: 3/8

• Filter Type: Reusable

• Auxiliary Heater Included: No

• Auxiliary Heater Available: No

• Fan Only Option: Yes

• Quiet Mode: Yes

• Auto Cool: Yes

• Wi-Fi Compatibility: Yes

• App Compatibility: Yes

• Works with iOS: Yes

• Works with Android: Yes

• Remote Control Included: Yes

• UL Listed: Yes

• ETL Listed: Yes

• Energy Star Certified: Yes

• AHRI Certified: Yes

• Registered Warranty: Extended Limited Lifetime*

• Base Parts Warranty: 5 years

• Base Compressor Warranty: 7 years

• Has Batteries: Yes

• Contains Electronics: Yes

• Contains Chemicals: Yes

• Contains Aerosol: Yes

• Contains Compressed Gas: Yes

• Proposition 65 Warning: Yes
• Net Depth (in): 7.44

• Net Height (in): 11.69

• Net Width (in): 31.57

• Net Weight (lbs): 24.91
• Gross Depth (in): 16.34

• Gross Height (in): 14.37

• Gross Width (in): 36.02

• Gross Weight (lbs): 35.49

Downloads

• Install Manual

• Owner Manual

• Remote Manual

• Service Manual
